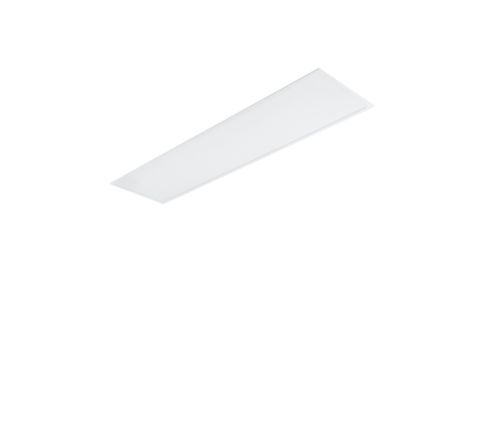

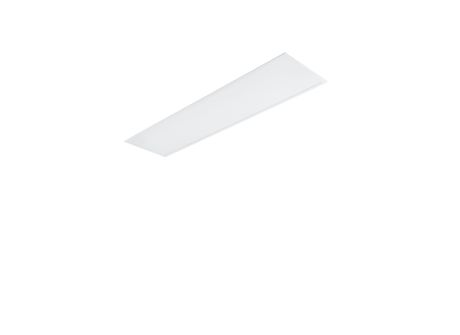

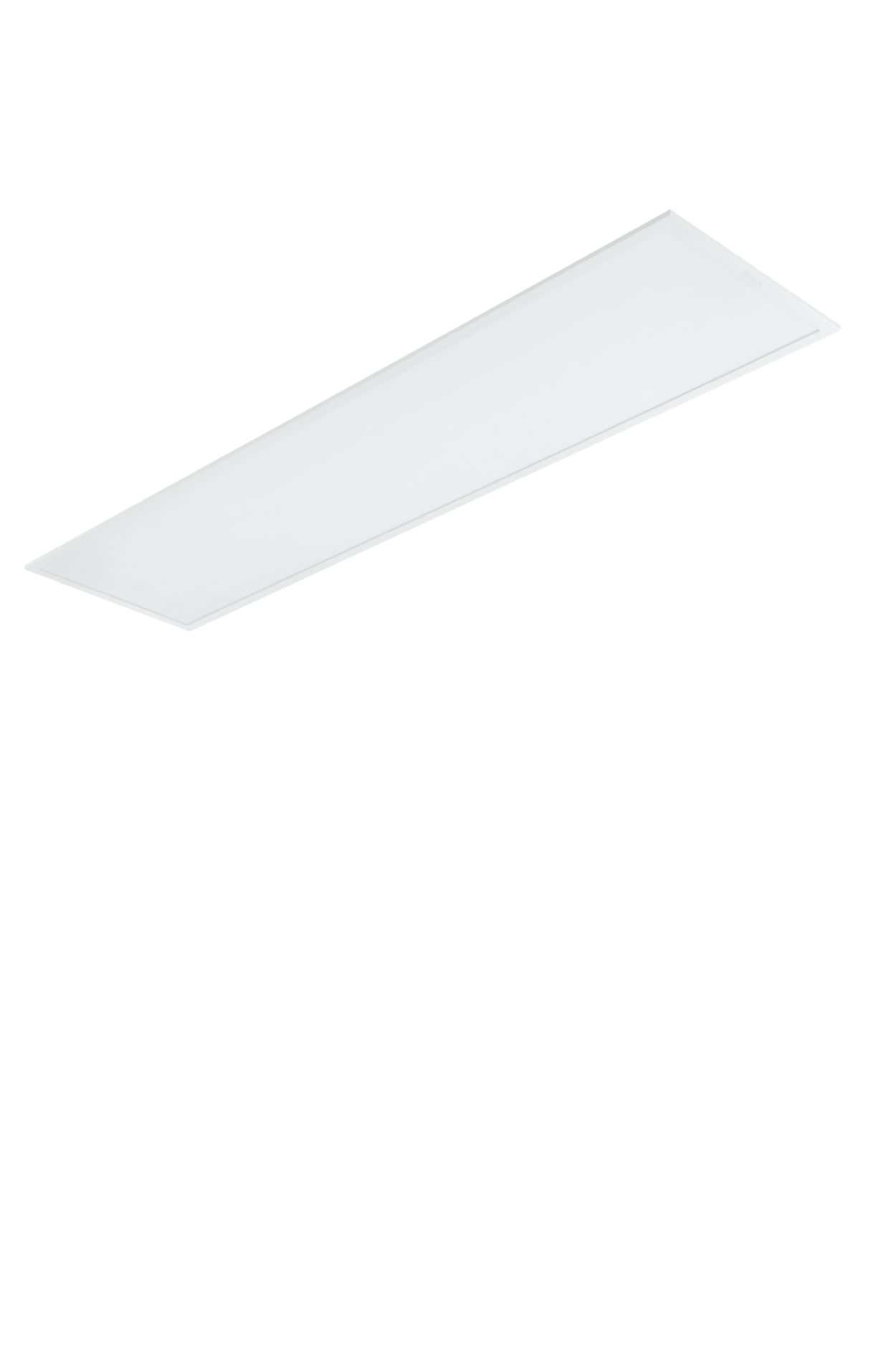

RC048B LED38S/865 PSU W30L120 2IN1W PCV

Specifications Show all

Operating and Electrical

Input Voltage	220 to 240 V
Input Frequency	50 or 60 Hz
Line Frequency	50 or 60 Hz
Inrush current	25 A
Power Consumption	40 W
Number of products on MCB of 16 A type B	10
Power Factor (Fraction)	0.9

Product Data

Numerator - Quantity Per Pack	1
EAN/UPC - Case	8719514957503
Order code	911401870784
Material number (12NC)	911401870784
Full product name	RC048B LED38S/865 PSU W30L120 2IN1W PCV
Full product code	871951495733699
Numerator - Packs per outer box	2
Order product name	RC048B LED38S/865 PSU W30L120 2IN1W PCV

Approval and Application

Mech. impact protection code	IK02  [0.2 J standard]
Ingress protection code	IP20  [Finger-protected]
CE mark	CE mark
Protection class IEC	Safety class II
Flammability mark	For mounting on normally flammable surfaces

Controls and Dimming

Dimmable	No
Control interface	-

General Information

Light source engine type

LED

Mechanical and Housing

Housing Material	Steel
Housing Color	White RAL 9003
Overall height	34 mm
Effective projected area	0.353 m²
Optical cover/lens finish	Opal
Overall length	1,195 mm
Overall width	295 mm
Optical cover/lens material	Polystyrene
Dimensions (Height x Width x Depth)	34 x 295 x 1195 mm

Initial Performance (IEC Compliant)

Initial chromaticity	(0.31, 0.33) SDCM≤5
Power consumption tolerance	+/-10%
Luminous flux tolerance	+/-10%

Temperature

Ambient temperature range

-10 to +35 °C

Light Technical

Luminous Flux	3,800 lumen
Luminous Efficacy (rated) (Nom)	95 lm/W
Light source color	865 cool daylight
Correlated Color Temperature (Nom)	6500 K
Color rendering index (CRI)	>80
Optical cover/lens type	Acrylate
