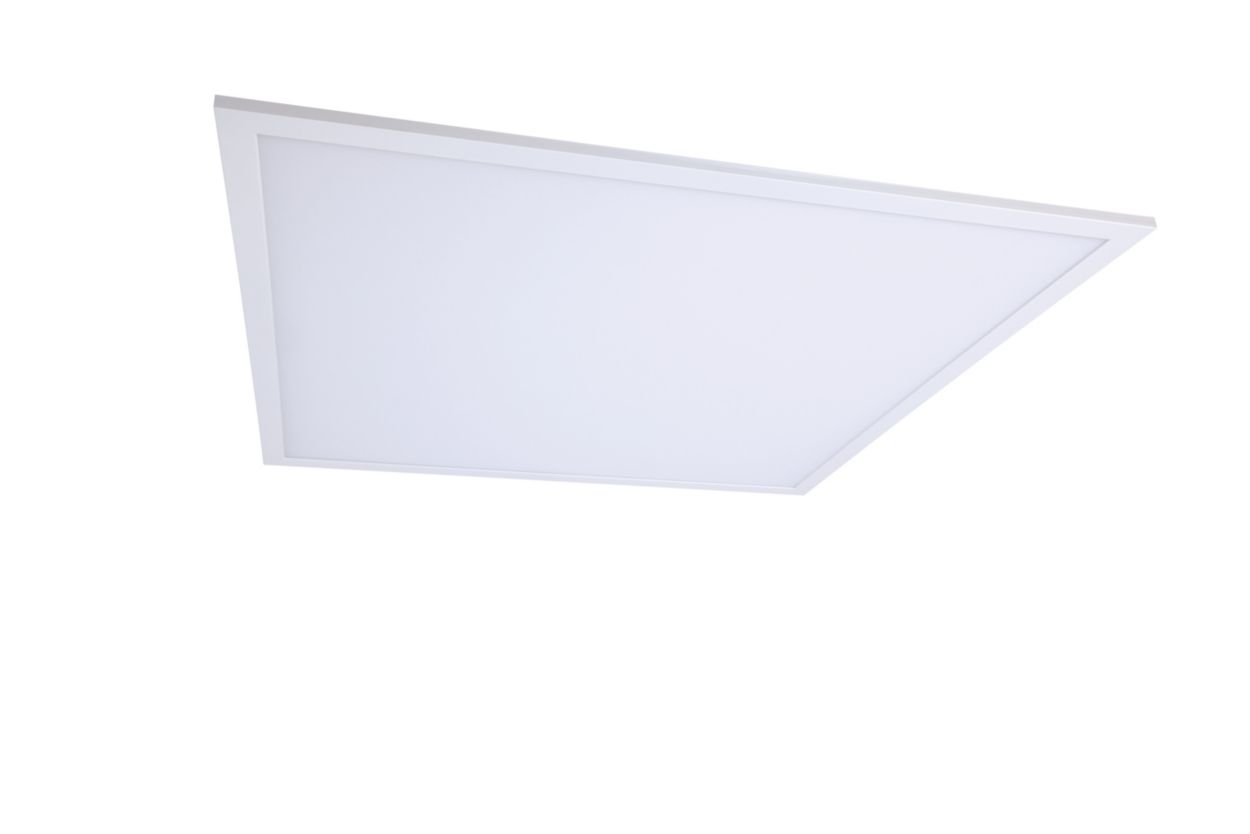

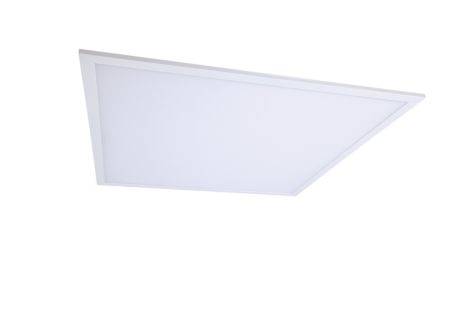

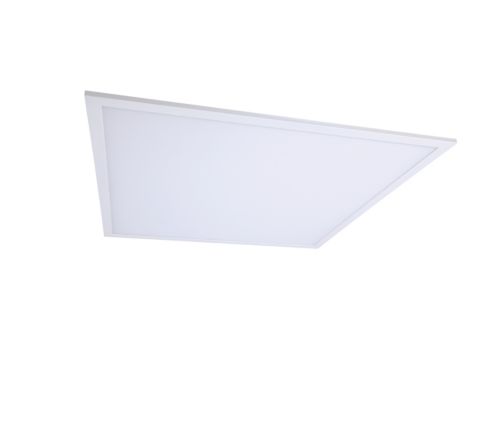

RC160X LED40S TW W60L60 PSD

Specifications Show all

Operating and Electrical

Line Frequency	50 or 60 Hz
Input Frequency	50 or 60 Hz
Input Voltage	220 to 240 V
Power Consumption	38 W
Number of products on MCB of 16 A type B	45
Power Factor (Fraction)	0.9

Over Time Performance (IEC Compliant)

Median useful life L80B50

50,000 hour(s)

Product Data

Numerator - Quantity Per Pack	1
Order code	911401728632
Material number (12NC)	911401728632
Full product name	RC160X LED40S TW W60L60 PSD
Full product code	911401728632
Order product name	RC160X LED40S TW W60L60 PSD
Numerator - Packs per outer box	2

Approval and Application

Mech. impact protection code	-
Protection class IEC	Safety class III
Ingress protection code	IP20  [Finger-protected]
CE mark	CE mark

Controls and Dimming

Dimmable	Yes
Control interface	DALI

General Information

Light source engine type

LED

Mechanical and Housing

Housing Color	White
Housing Material	Aluminum extruded
Overall height	30 mm
Optical cover/lens finish	Matte
Overall width	600 mm
Overall length	600 mm
Optical cover/lens material	Acrylate and polycarbonate
Dimensions (Height x Width x Depth)	30 x 600 x 600 mm

Initial Performance (IEC Compliant)

Power consumption tolerance	+/-10%
Luminous flux tolerance	+/-10%

Temperature

Ambient temperature range

-20 to +45 °C

Light Technical

Luminous Flux	3,200 lumen
Luminous Efficacy (rated) (Nom)	85 lm/W
Light source color	865 cool daylight, 827 warm white and 865 cool daylight
Optical cover/lens type	Acrylate cover and semi-matt high-reflective optic
Correlated Color Temperature (Nom)	3000 K	6500 K
Color rendering index (CRI)	>80
