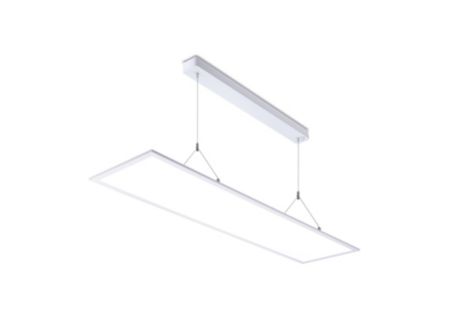

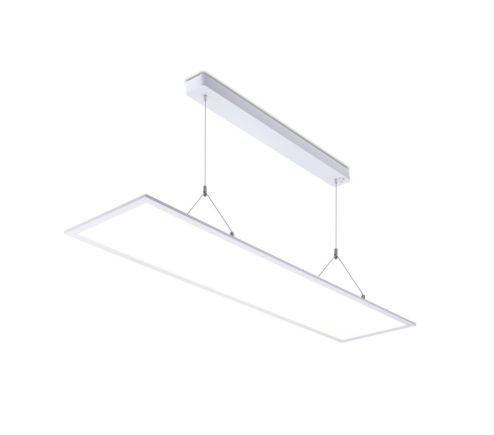

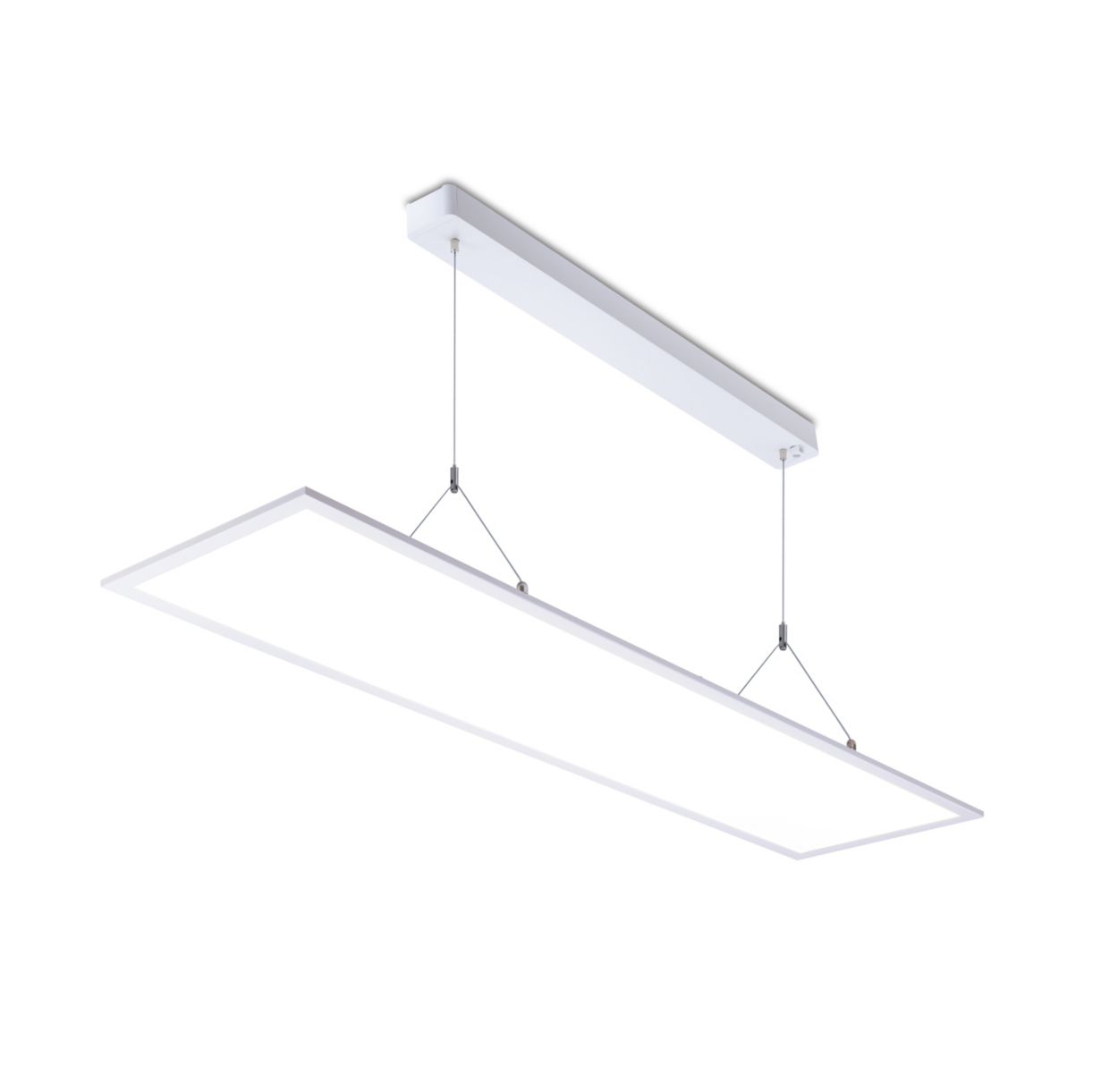

SP160P LED40S 840 W30L120 PSU SI

Specifications Show all

Operating and Electrical

Line Frequency	50 or 60 Hz
Input Voltage	220 to 240 V
Input Frequency	50 or 60 Hz
Power Consumption	36 W
Number of products on MCB of 16 A type B	30
Power Factor (Fraction)	0.9

Over Time Performance (IEC Compliant)

Median useful life L80B50

50,000 hour(s)

Product Data

Numerator - Quantity Per Pack	1
Order code	911401726912
Material number (12NC)	911401726912
Full product name	SP160P LED40S 840 W30L120 PSU SI
Full product code	911401726912
Order product name	SP160P LED40S 840 W30L120 PSU SI
Numerator - Packs per outer box	2

Approval and Application

Mech. impact protection code	-
Protection class IEC	Safety class III
Ingress protection code	IP20  [Finger-protected]
CE mark	CE mark

Controls and Dimming

Dimmable	No
Control interface	-

General Information

Light source engine type

LED

Mechanical and Housing

Housing Color	White
Housing Material	Aluminum extruded
Overall height	30 mm
Optical cover/lens finish	Matte
Overall width	300 mm
Overall length	1,200 mm
Optical cover/lens material	Acrylate and polycarbonate
Dimensions (Height x Width x Depth)	30 x 300 x 1200 mm

Initial Performance (IEC Compliant)

Power consumption tolerance	+/-10%
Luminous flux tolerance	+/-10%

Temperature

Ambient temperature range

-20 to +45 °C

Light Technical

Luminous Flux	4,000 lumen
Light source color	840 neutral white
Luminous Efficacy (rated) (Nom)	110 lm/W
Optical cover/lens type	Acrylate cover and semi-matt high-reflective optic
Correlated Color Temperature (Nom)	4000 K
Color rendering index (CRI)	>80
