| Line Frequency | 50 to 60
Hz
|
| Input Frequency | 50 to 60
Hz
|
| Input Voltage | 110 to 277
V
|
| Cable | -
|
| Initial CLO power consumption | NA
W
|
| Power Consumption | 36
W
|
| Connection | Internal connector
|
| Average CLO power consumption | NA
W
|
| Number of products on MCB of 16 A type B | 43/106
|
| Power Factor (Fraction) | 0.9
|
| Numerator - Quantity Per Pack | 1
|
| Material number (12NC) | 911401720782
|
| Order code | 911401720782
|
| Full product code | 911401720782
|

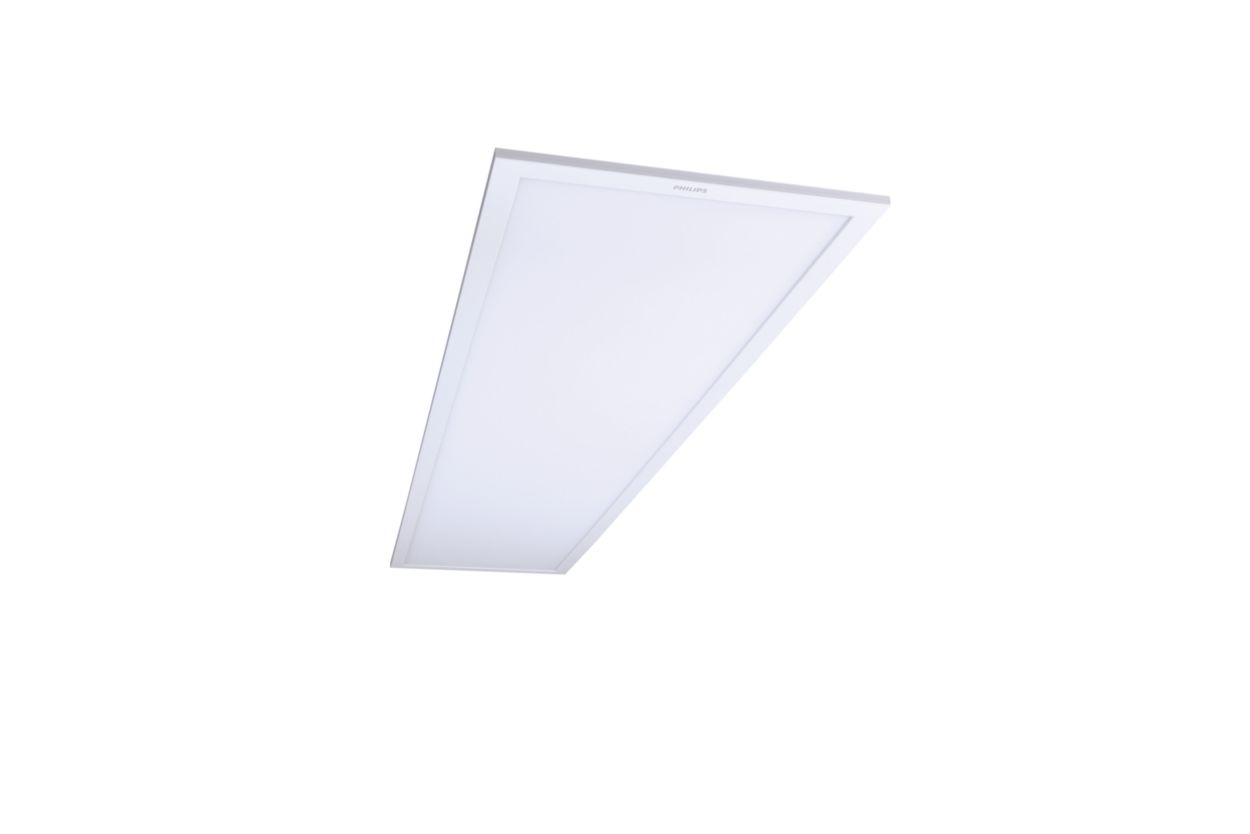

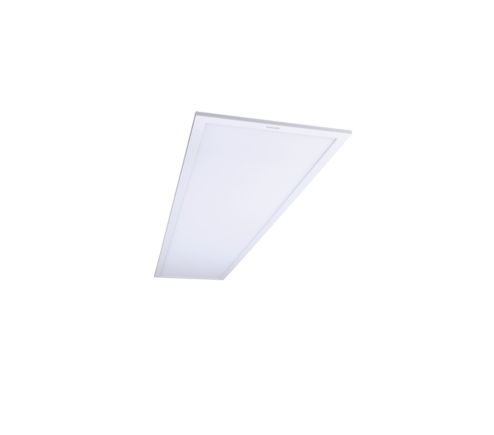

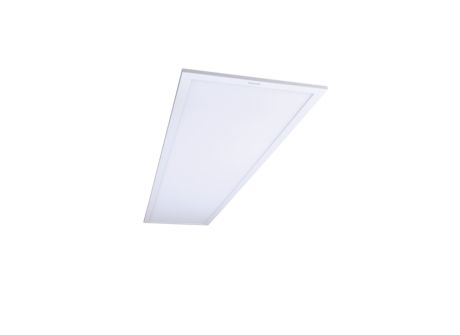

| Full product name | RC160V LED40S 840 W30L120 PSU UVG
|
| Order product name | RC160V LED40S 840 W30L120 PSU UVG
|
| Numerator - Packs per outer box | 2
|
| Mech. impact protection code | IK03
[0.3 J] |
| Warranty period | 3 years
|
| EU RoHS compliant | Yes
|
| Ingress protection code | IP20
[Finger-protected] |
| CE mark | CE mark
|
| Protection class IEC | Safety class II
|
| ENEC mark | -
|
| Flammability mark | -
|
| Glow-wire test | Temperature 650 °C, duration 30 s
|
| Constant light output | No
|
| Dimmable | No
|
| Driver/power unit/transformer | -
|
| Control interface | -
|
| Service tag | Yes
|
| Light source replaceable | No
|
| Number of gear units | 1 unit
|
| Light source engine type | LED
|
| Driver included | Yes
|
| Housing Color | White
|
| Housing Material | Aluminum
|
| Overall height | 8.3
mm
|
| Optical cover/lens finish | Frosted
|
| Optic material | Polystyrene
|
| Reflector material | -
|
| Fixation material | Steel
|
| Overall width | 295
mm
|
| Optical cover/lens material | Polystyrene
|
| Overall length | 1,195
mm
|
| Dimensions (Height x Width x Depth) | 8 x 295 x 1195 mm
|
| Maximum dim level | Not applicable
|
| Initial chromaticity | (0.43, 0.40) SDCM<4
|
| Luminous flux tolerance | +/-5%
|
| Power consumption tolerance | +/-10%
|
| Ambient temperature range | -20 to +45 °C
|
| Beam angle of light source | -
degree(s)
|
| Optic type | Wide beam
|
| Luminous Flux | 4,000
lumen
|
| Luminous Efficacy (rated) (Nom) | 110
lm/W
|
| Correlated Color Temperature (Nom) | 4000
K
|
| Color rendering index (CRI) | >80
|
| Light source color | 840 neutral white
|
| Luminaire light beam spread | 110°
|
| Optical cover/lens type | Polystyrene bowl/cover prismatic
|
