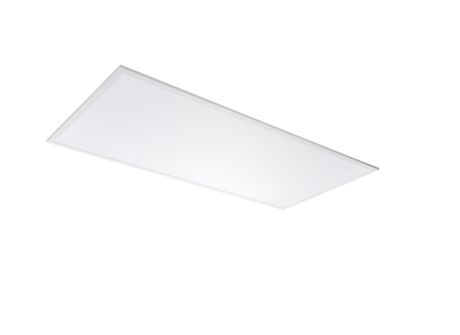

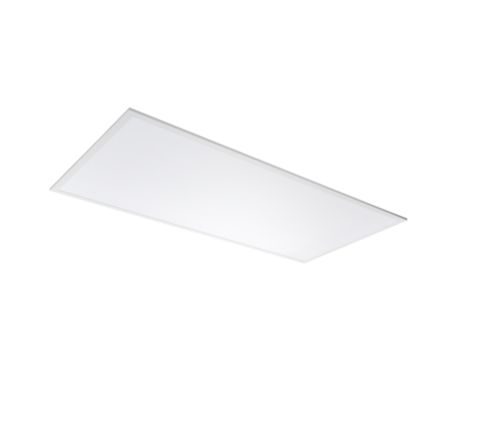

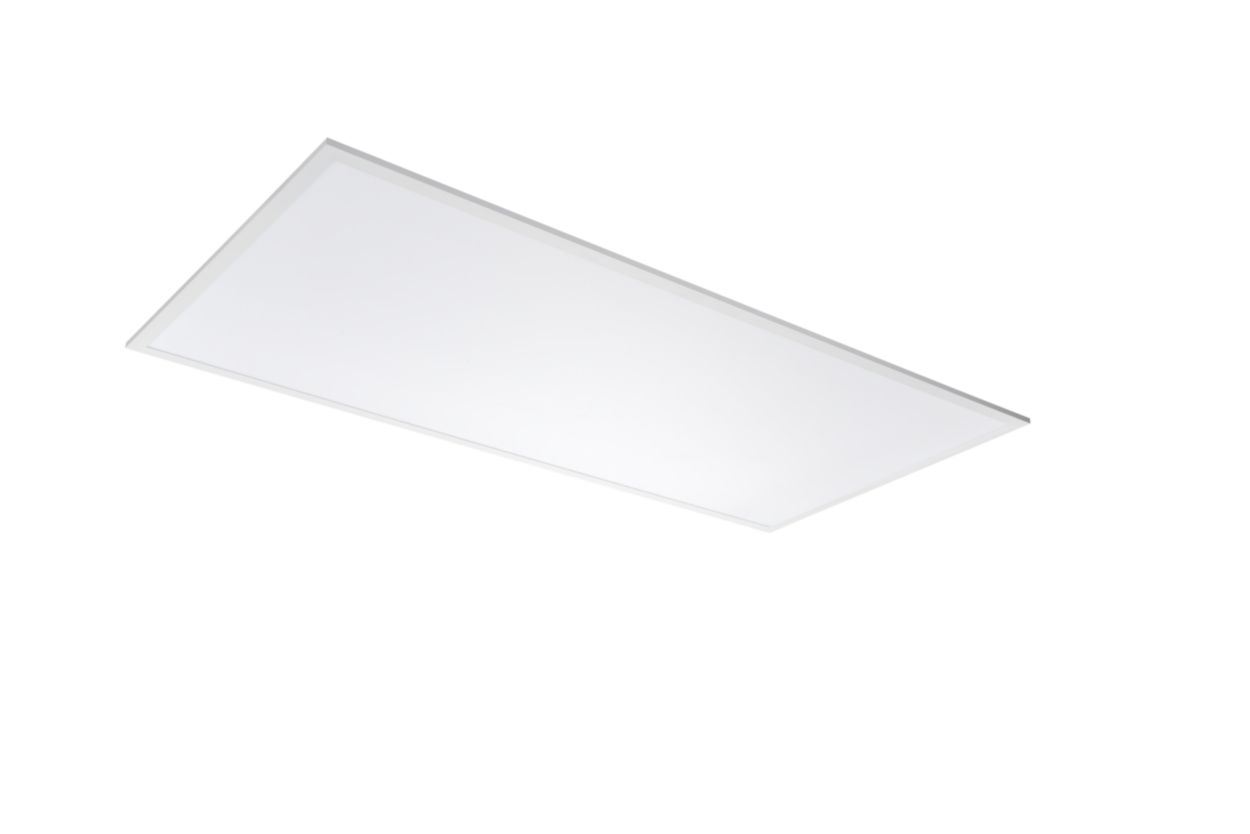

RC099V G2 LED54/865 PSU W60L120

Specifications Show all

Operating and Electrical

Input Frequency	50 or 60 Hz
Line Frequency	50 or 60 Hz
Input Voltage	220 to 240 V
Power Consumption	45 W
Number of products on MCB of 16 A type B	27
Power Factor (Fraction)	0.9

Product Data

Numerator - Quantity Per Pack	1
EAN/UPC - Case	6923828643751
Order code	911401700813
Material number (12NC)	911401700813
Full product name	RC099V G2 LED54/865 PSU W60L120
Full product code	692382864375199
Order product name	RC099V G2 LED54/865 PSU W60L120
Numerator - Packs per outer box	2

Approval and Application

Mech. impact protection code	-
Protection class IEC	Safety class II
Ingress protection code	IP20  [Finger-protected]
CE mark	CE mark

Controls and Dimming

Dimmable	No
Control interface	-

General Information

Light source engine type

LED

Mechanical and Housing

Housing Material	Steel
Housing Color	White RAL 9003
Overall height	57 mm
Optical cover/lens finish	Opal
Overall width	595 mm
Overall length	1,195 mm
Optical cover/lens material	Polystyrene
Dimensions (Height x Width x Depth)	57 x 595 x 1195 mm

Initial Performance (IEC Compliant)

Power consumption tolerance	+/-10%
Luminous flux tolerance	+/-10%

Temperature

Ambient temperature range

-20 to +40 °C

Light Technical

Luminous Flux	5,400 lumen
Luminous Efficacy (rated) (Nom)	120 lm/W
Light source color	865 cool daylight
Optical cover/lens type	Polystyrene bowl/cover prismatic
Correlated Color Temperature (Nom)	6500 K
Color rendering index (CRI)	>80
