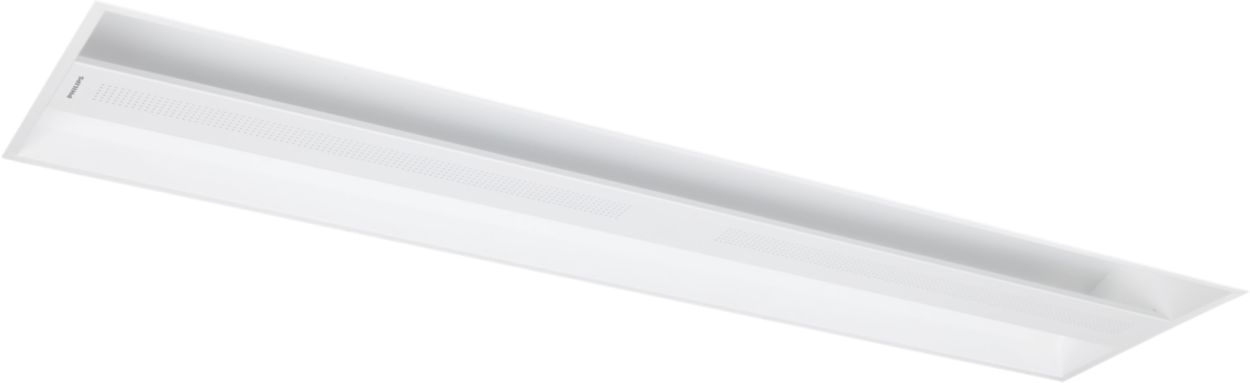

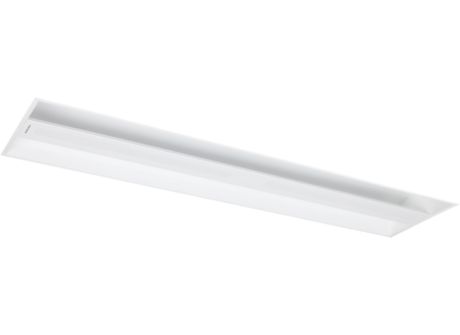

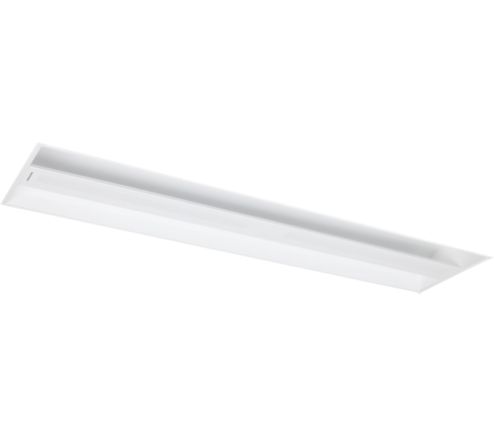

RC420B LED35S/840 PSD W30L120 GM

Specifications Show all

Operating and Electrical

Line Frequency	50 or 60 Hz
Input Voltage	220 to 240 V
Input Frequency	50 or 60 Hz
Inrush current	22 A
Power Consumption	36 W
Connection	Internal connector
Inrush time	2,750 ms
Number of products on MCB of 16 A type B	24
Power Factor (Fraction)	0.9

Over Time Performance (IEC Compliant)

Median useful life L70B50

50,000 hour(s)

Product Data

Numerator - Quantity Per Pack	1
Material number (12NC)	911401803697
Full product name	RC420B LED35S/840 PSD W30L120 GM
Order code	911401803697
Full product code	911401803697
Numerator - Packs per outer box	2
Order product name	RC420B LED35S/840 PSD W30L120 GM

Approval and Application

Mech. impact protection code	IK03  [0.3 J]
Warranty period	3 years
Ingress protection code	IP20  [Finger-protected]
CE mark	CE mark
Glow-wire test	Temperature 600 °C, duration 30 s
Protection class IEC	Safety class I

Controls and Dimming

Constant light output	No
Dimmable	Yes
Control interface	DALI

General Information

Light source replaceable	No
Light source engine type	LED
Number of gear units	1 unit
Driver included	Yes

Mechanical and Housing

Housing Material	Metal
Housing Color	White
Overall height	121 mm
Optical cover/lens finish	Opal
Optic material	Polystyrene
Fixation material	Steel
Overall length	597 mm
Overall width	597 mm
Optical cover/lens material	Polymethyl methacrylate
Dimensions (Height x Width x Depth)	121 x 597 x 597 mm

Application Conditions

Maximum dim level

1%

Initial Performance (IEC Compliant)

Initial chromaticity	(0.43, 0.40) SDCM<4
Luminous flux tolerance	+/-10%
Power consumption tolerance	+/-10%

Temperature

Ambient temperature range

-20 to +40 °C

Light Technical

Optic type	Wide beam
Luminous Flux	3,600 lumen
Light source color	865 cool daylight
Luminous Efficacy (rated) (Nom)	100 lm/W
Correlated Color Temperature (Nom)	6500 K
Color rendering index (CRI)	>80
Luminaire light beam spread	120°
Optical cover/lens type	Opal
