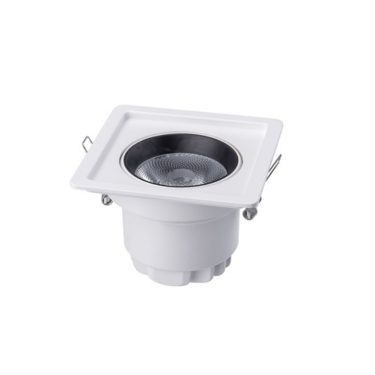

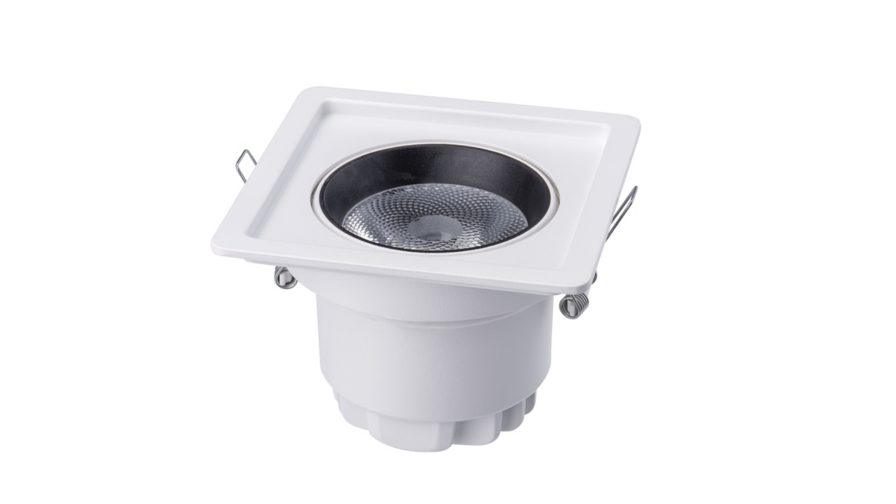

GD700B LED10 830 PSU MB WH

Specifications Show all

General Information

Light source color	830 warm white
Optical cover/lens type	Lens
Control interface	-
Protection class IEC	Safety class II (II)
CE mark	CE mark
Number of products on MCB of 16 A type B	1
Light source engine type	LED

Operating and Electrical

Input Voltage	220 to 240 V
Input Frequency	50 or 60 Hz
Power Factor (Min)	0.91

Controls and Dimming

Dimmable

No

Mechanical and Housing

Housing Material	Aluminum
Optical cover/lens material	Polymethyl methacrylate
Optical cover/lens finish	-
Overall length	100 mm
Overall width	100 mm
Overall height	75 mm
Color	White RAL 9003

Approval and Application

Ingress protection code	IP20  [ Finger-protected]
Mech. impact protection code	-

Initial Performance (IEC Compliant)

Initial luminous flux (system flux)	942 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	114 lm/W
Init. Corr. Color Temperature	3000 K
Init. Color Rendering Index	>80
Initial input power	8 W
Power consumption tolerance	+/-10%

Application Conditions

Ambient temperature range

-15 to +35 °C

Product Data

Full product code	911401518371
Order product name	GD700B LED10 830 PSU MB WH
Order code	911401518371
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	1
Material Nr. (12NC)	911401518371
Net Weight (Piece)	0.350 kg
