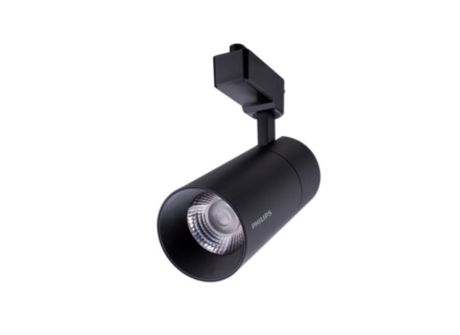

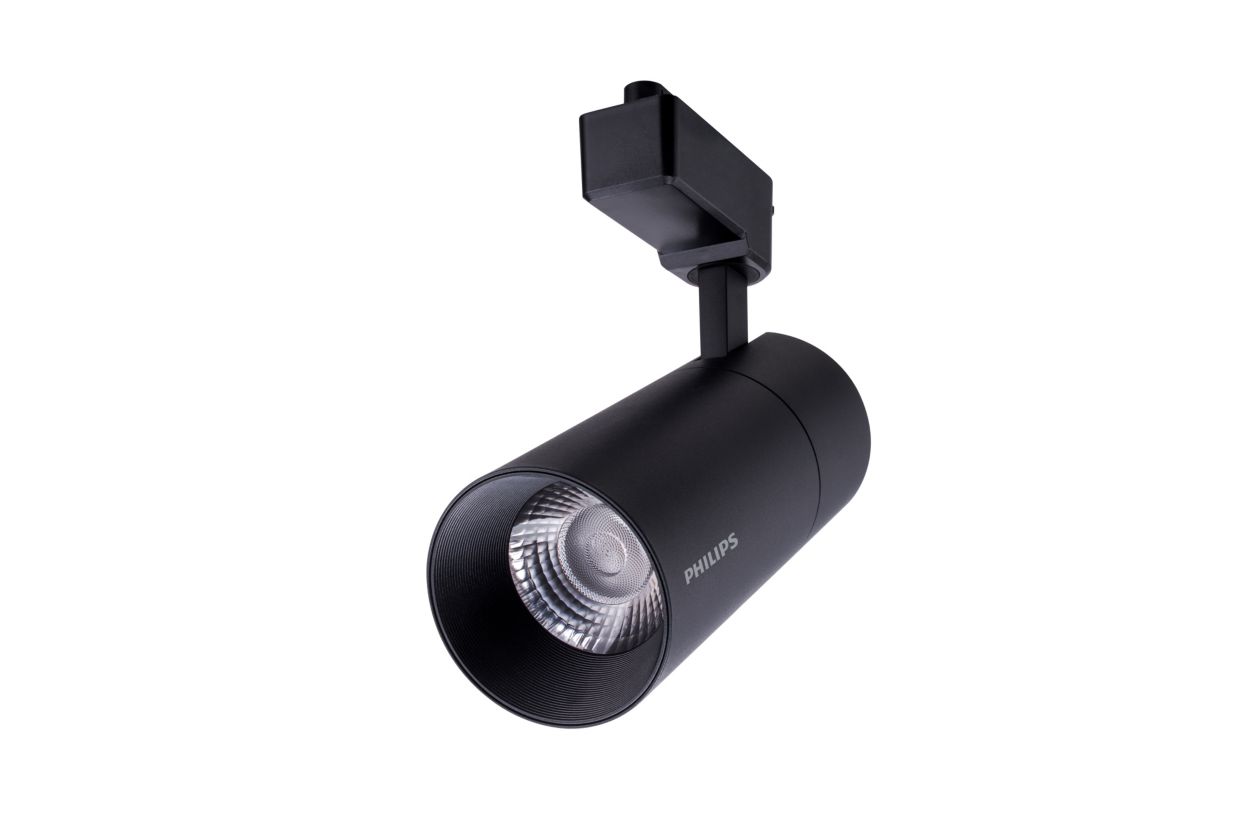

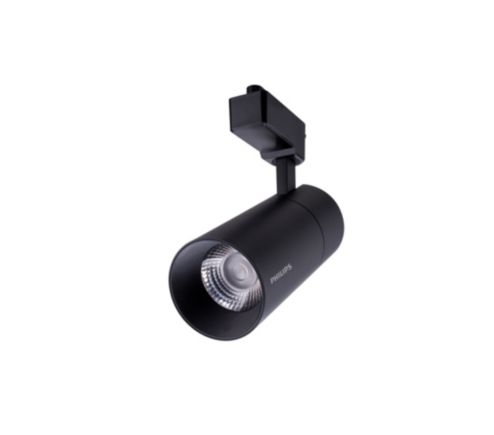

ST033T LED25/830 30W 220-240V I WB BK GM

Specifications Show all

Operating and Electrical

Line Frequency	50 or 60 Hz
Input Voltage	220 to 240 V
Input Frequency	50 or 60 Hz
Inrush current	18 A
Power Consumption	30 W
Number of products on MCB of 16 A type B	70
Power Factor (Fraction)	0.9

Product Data

Numerator - Quantity Per Pack	1
EAN/UPC - Case	8719514544604
Order code	911401890782
Full product code	871951454432199
Material number (12NC)	911401890782
Full product name	ST033T LED25/830 30W 220-240V I WB BK GM
Numerator - Packs per outer box	24
Order product name	ST033T LED25/830 30W 220-240V I WB BK GM

Approval and Application

Mech. impact protection code	IK03  [0.3 J]
Protection class IEC	Safety class I
Ingress protection code	IP20  [Finger-protected]
CE mark	-
Flammability mark	-

Controls and Dimming

Dimmable	No
Control interface	-

General Information

Light source engine type

LED

Mechanical and Housing

Housing Material	Aluminum
Housing Color	Black
Overall height	235 mm
Optical cover/lens finish	Textured
Overall width	76 mm
Optical cover/lens material	Polycarbonate
Overall length	93 mm
Overall diameter	76 mm
Dimensions (Height x Width x Depth)	235 x 76 x 93 mm

Initial Performance (IEC Compliant)

Initial chromaticity	(0.4316, 0.3984) SDCM <5
Power consumption tolerance	+/-10%
Luminous flux tolerance	+/-10%

Temperature

Ambient temperature range

-20 to +45 °C

Light Technical

Luminous Flux	2,400 lumen
Light source color	830 warm white
Luminous Efficacy (rated) (Nom)	80 lm/W
Optical cover/lens type	Fashion proof optic beam angle 36°
Correlated Color Temperature (Nom)	3000 K
Color rendering index (CRI)	>80
