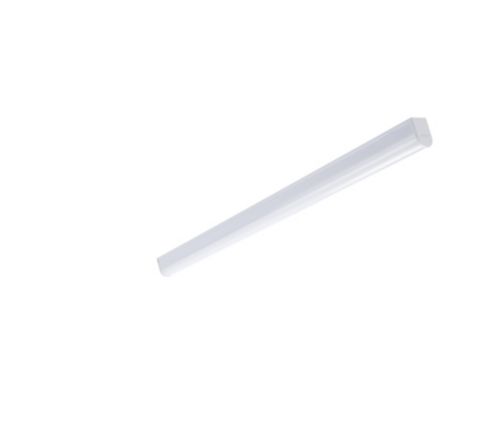

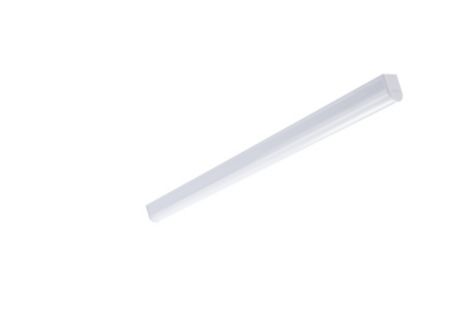

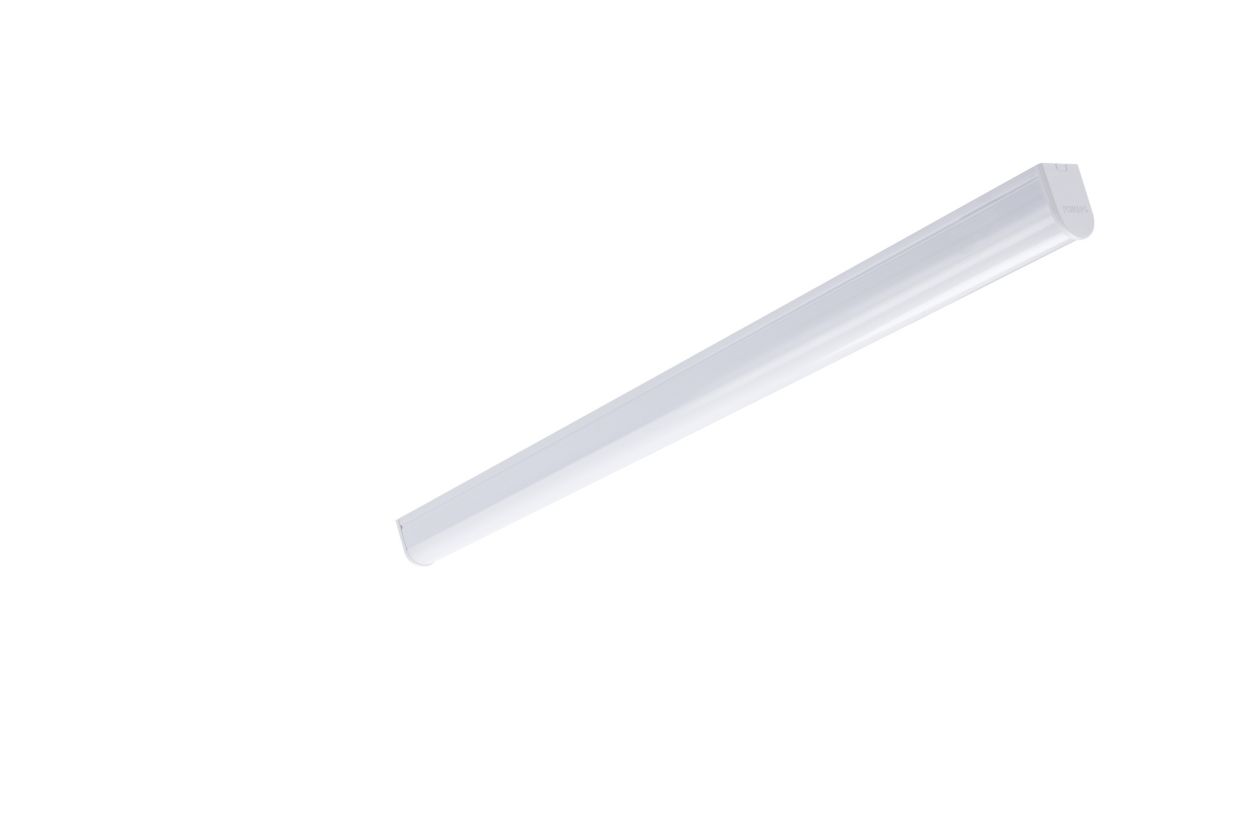

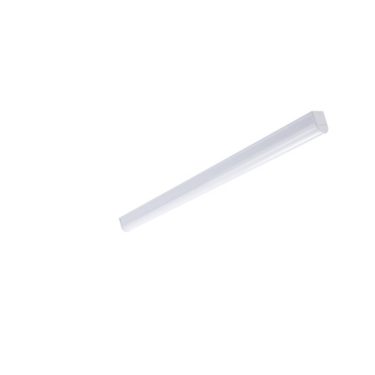

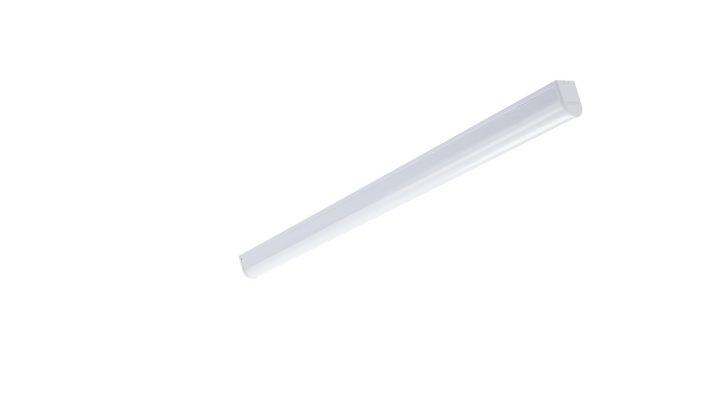

BN012C LED10/CW L600 G3

Specifications Show all

Operating and Electrical

Input Frequency	50 or 60 Hz
Line Frequency	50 or 60 Hz
Input Voltage	220 to 240 V
Inrush current	9 A
Power Consumption	10 W
Number of products on MCB of 16 A type B	10
Power Factor (Fraction)	0.9

Product Data

Numerator - Quantity Per Pack	1
EAN/UPC - Case	8719514518049
Order code	911401808382
Material number (12NC)	911401808382
Full product name	BN012C LED10/CW L600 G3
Full product code	871951451783799
Numerator - Packs per outer box	40
Order product name	BN012C LED10/CW L600 G3

Approval and Application

Mech. impact protection code	IK02  [0.2 J standard]
Ingress protection code	IP20  [Finger-protected]
CE mark	CE mark
Protection class IEC	Safety class II
Flammability mark	For mounting on normally flammable surfaces

Controls and Dimming

Dimmable	No
Control interface	-

General Information

Light source engine type

LED

Mechanical and Housing

Housing Material	Polycarbonate
Housing Color	White
Overall height	35.7 mm
Optical cover/lens finish	Opal
Effective projected area	0.016 m²
Overall length	574 mm
Overall width	28.4 mm
Optical cover/lens material	Polycarbonate
Dimensions (Height x Width x Depth)	36 x 28 x 574 mm

Initial Performance (IEC Compliant)

Initial chromaticity	0.3123, 0.3282, SDCM≤6
Power consumption tolerance	+/-10%
Luminous flux tolerance	+/-10%

Temperature

Ambient temperature range

-20 to +40 °C

Light Technical

Luminous Flux	1,000 lumen
Light source color	865 cool daylight
Luminous Efficacy (rated) (Nom)	100 lm/W
Correlated Color Temperature (Nom)	6500 K
Color rendering index (CRI)	>80
Optical cover/lens type	Polycarbonate
