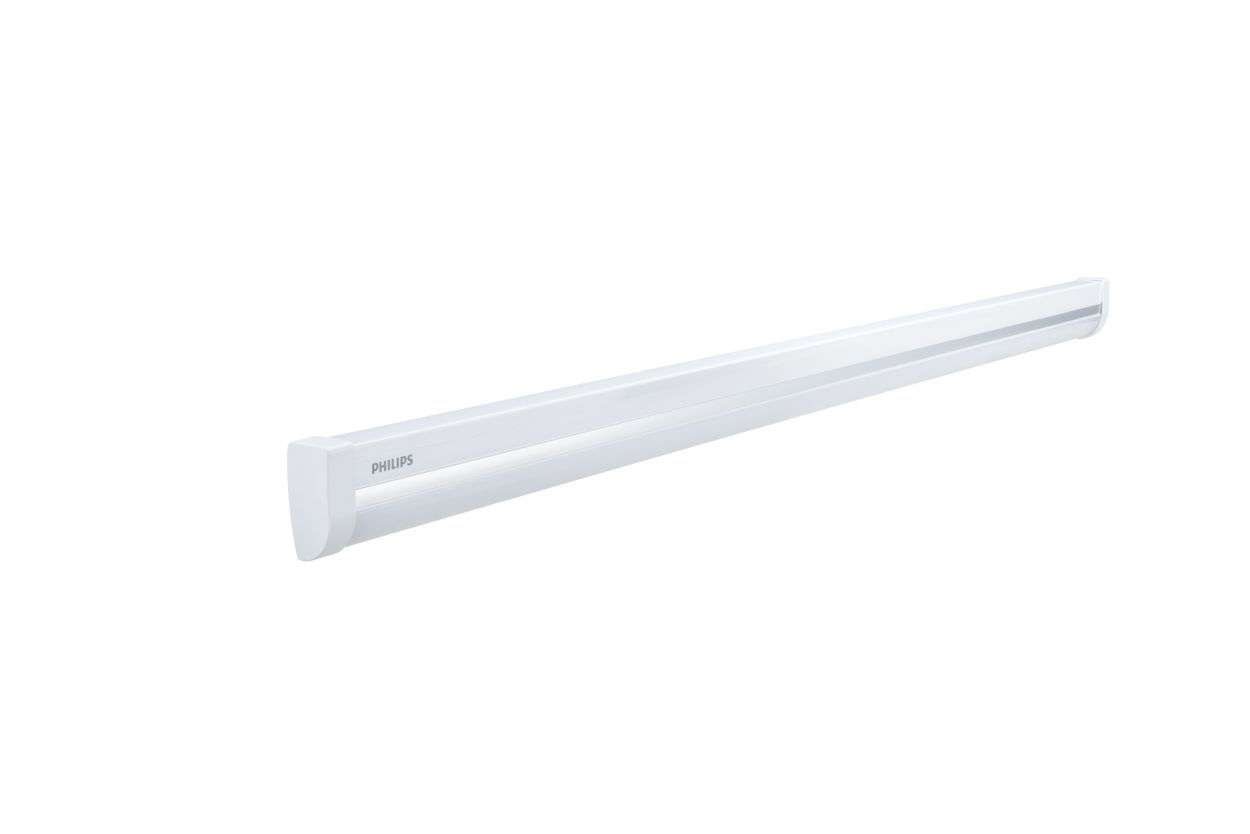

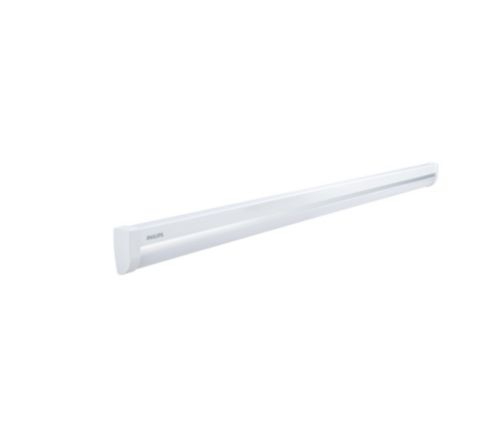

BN040C LED20-20/CW-WW L1200

Specifications Show all

Operating and Electrical

Input Frequency	50 or 60 Hz
Input Voltage	220 to 240 V
Line Frequency	50 or 60 Hz
Inrush current	13.1 A
Power Consumption	20 W
Number of products on MCB of 16 A type B	57
Power Factor (Fraction)	0.9

Product Data

Numerator - Quantity Per Pack	1
EAN/UPC - Case	8719514950528
Material number (12NC)	911401845284
Full product name	BN040C LED20-20/CW-WW L1200
Order code	911401845284
Full product code	871951495051199
Order product name	BN040C LED20-20/CW-WW L1200
Numerator - Packs per outer box	24

Approval and Application

Mech. impact protection code	IK02  [0.2 J standard]
Ingress protection code	IP20  [Finger-protected]
CE mark	-
Protection class IEC	Safety class II
Flammability mark	For mounting on normally flammable surfaces

Controls and Dimming

Dimmable	No
Control interface	-

General Information

Light source engine type

LED

Mechanical and Housing

Housing Color	White
Housing Material	Polycarbonate
Overall height	67.5 mm
Optical cover/lens finish	Opal
Overall width	32 mm
Overall length	1,184 mm
Optical cover/lens material	Polycarbonate
Dimensions (Height x Width x Depth)	68 x 32 x 1184 mm

Initial Performance (IEC Compliant)

Initial chromaticity	(0.44,0.40) SDCM≤6; (0.31,0.33) SDCM≤6
Power consumption tolerance	+/-10%
Luminous flux tolerance	-10% / +20%

Temperature

Ambient temperature range

-20 to +45 °C

Light Technical

Luminous Flux	2,000 lumen
Luminous Efficacy (rated) (Nom)	100 lm/W
Light source color	830 warm white and 865 cool daylight
Optical cover/lens type	Polycarbonate
Correlated Color Temperature (Nom)	3000 K	6500 K
Color rendering index (CRI)	>80
