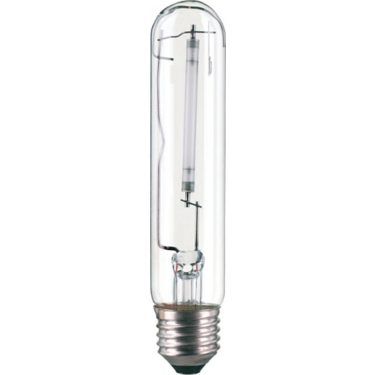

SON-T 70W/220 E27 1CT/12

Specifications Show all

General information

Cap-Base	E27  [ E27]
Operating Position	UNIVERSAL  [ Universal]
Life to 5% Failures (Nom)	12000 h
Life To 10% Failures (Nom)	15000 h
Life to 20% Failures (Nom)	19000 h
Life to 50% Failures (Nom)	28000 h
System Description	External Ignitor (E)
LSF 2000 h Rated	99 %
LSF 4000 h Rated	99 %
LSF 6000 h Rated	98 %
LSF 8000 h Rated	97 %
LSF 12000 h Rated	95 %
LSF 16000 h Rated	89 %
LSF 20000 h Rated	79 %

Light technical

Color Code	220  [ CCT of 2000K]
Luminous Flux (Rated) (Nom)	6000 lm
Chromaticity Coordinate X (Nom)	0.540
Chromaticity Coordinate Y (Nom)	0.413
Correlated Color Temperature (Nom)	2000 K
Luminous Efficacy (rated) (Nom)	84 lm/W
Color Rendering Index (Max)	25
Color Rendering Index (Nom)	-
LLMF 2000 h Rated	89 %
LLMF 4000 h Rated	86 %
LLMF 6000 h Rated	85 %
LLMF 8000 h Rated	84 %
LLMF 12000 h Rated	81 %
LLMF 16000 h Rated	81 %
LLMF 20000 h Rated	80 %
Ratio Scotopic/Photopic Lumens	0.50

Operating and electrical

Power (Rated) (Nom)	70.0 W
Lamp Current (EM) (Nom)	0.98 A
Ignition Supply Voltage (Max)	198 V
Ignition Peak Voltage (Max)	1800 V
Re-Ignition Time (Min) (Max)	180 s
Ignition Time (Max)	5 s
Voltage (Max)	105 V
Voltage (Min)	75 V
Voltage (Nom)	90 V

Controls and dimming

Dimmable	Yes
Run-Up Time 90% (Max)	5 min

Mechanical and housing

Bulb Finish	Clear
Cap-Base Information	na  [ -]
Bulb Shape	T35  [ T 35mm]

Approval and application

Mercury (Hg) Content (Nom)	16.3 mg
Energy Consumption kWh/1000 h	77 kWh

Luminaire design requirements

Bulb Temperature (Max)	350 °C
Cap-Base Temperature (Max)	200 °C
Cap-Base Temperature (Max)-DUP(do not use)	392 °F

Product data

Full product code	871150019267715
Order product name	SON-T 70W/220 E27 1CT/12
EAN/UPC - Product	8711500192677
Order code	928152800035
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	12
Material Nr. (12NC)	928152800035
Net Weight (Piece)	44.000 g
ILCOS Code	ST-70-H/E-E27
